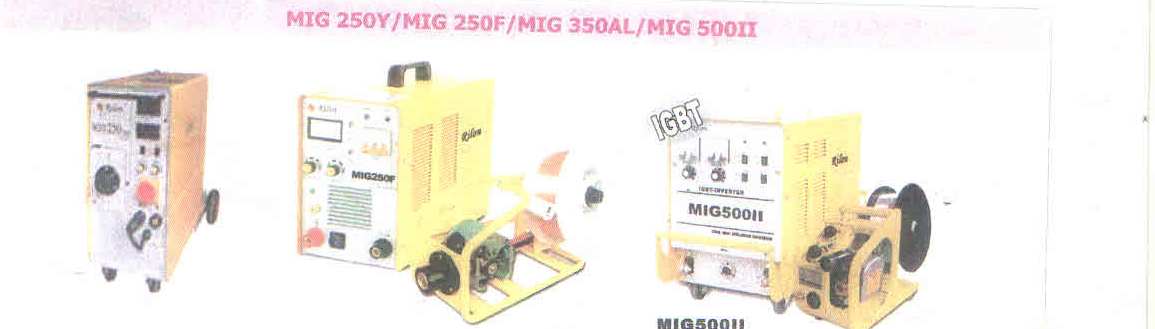

 MIG SERIES INVERTER EMI AUTO MIG/MAG WELDER
Has unique output characteristics, very stable metal transfer, less spatter, good appearance and excellent welded seam.
Advanced electric ciruit design, less switch loss, less IGBT heating, increase greatly the efficiency of the welder and dity cycle.
Light and handy, high efficiency, energy saving, higher inverter frequency decreases he power loss, electric power saving is remarkable.
Welding current, voltage adjust steplessly, can meet the requirement of different welding process.
Simple and advanced circuit design, welder performance reliable and easy to maintain, has perfect function to realise automating welding easily.
With quick protection circuit for over current, protect IGBT against break down effectively suitable for continuous work.
Mainly applied for welding carbon steel, stainless steel etc. in welding position. The welder rated current more than 350A is suitable for welding in shipbuilding, car, bridge, and steel structure etc. insustries. The welder rated current less than 250 is suitable for welding sheet metal

Rated Input 440V/12.7A 440V/12.7A 440V/12A 440V/23.1A
Rated Output @Duty Cycle 26.5V/250A@60% 26.5V/250A@60% 104V/60A@60% 120V/100A@60%
Output Range/Phage 50-250 Amp 50-250 Amp 20-80 Amp - 3 Phs 20-100 Amp - 3 Phs
Suitable for Thickness 0.8 mm 0.8 mm 1.0 mm 1.2 mm
Efficiency 0.85 0.85 0.850.85
Dimesion (MM) 570 * 295 * 528 (MM) 480 * 204 * 303 (MM) 515 * 260 * 370 (MM) 760 * 310 * 437 (MM)
Net Weight 33 Kg 15 Kg 28 Kg 40 Kg
Arcing Way 0.8 - 1.0 mm 0.8 - 1.0 mm 1.0 - 1.2 mm 1.0 - 1.6 mm
