»  AC/DC TIG SERIES WSE SERIES INVERTER SQUARE WAVE TIG WELDER ( An ISO 9001:2008 Certified Company )
ac

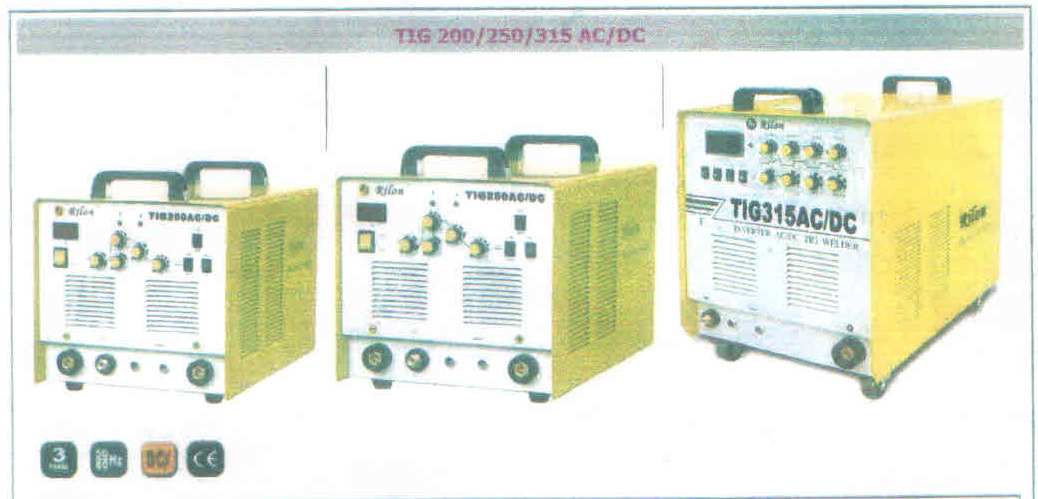

 AC/DC TIG SERIES WSE SERIES INVERTER SQUARE WAVE TIG WELDER
Upgrade square wave power source current with high speed through the zero, arc is stable no high frequency stabilizer is necessary
Good are stiffness, heat concerntrated, easy to fill wire, is especially suitable for filler wire welding in bicycle industry
Super oxide film clean capability, clean time is adjustable steplessly, beutiful and bright welded seam
Has connected to foot control, convenient for workers operation.
Build in over heat, over voltage, low voltage alarm protection circuit, safe and reliable when operating.
High duty cycle, may work continuously with high current.
Suitable for welding aluminum and its alloy, carbon steel, staneless steel, copper, titanium etc metal.

TIG 200 AC/DCTIG 250 AC/DCTIG 315 AC/DC
Rated Input220V/28A440V/9.7A440V/13.6A
Rated Output @Duty Cycle18V/200A@60%20V/250A@60%23V/315A@60%
Output Range/Phage5-200Amp - Phs5-220Amp - 3 Phs5-315Amp - 3 Phs
Open Circuit Voltage56V45V45V
Efficiency0.80.850.85
Dimesion (MM)498 * 328 * 302560 * 364 * 430560 * 364 * 430
Net Weight20 Kg20 Kg34 Kg
Arcing WayHFHFHF
