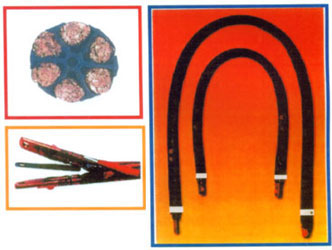

Kickless Dual Conductor Cable




Connectors of Cables
Kickless Dual Conductor Cable Kickless Dual Conductor Cable
Kickless Dual Conductor Cable

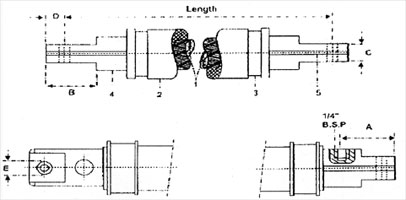

1. Flex CU Braided Wire.

2. Outer Cover Rubber Hose

3. Hose Clamp

4. High Conductivity Copper Terminal

5. Fiber Insulator.

HOW TO ORDER ELECTROMECH KICKLESS CABLE
Please supply the following information.
Sl. No. MCM / MM2 DIAMENSIONS IN MM
Length A B C D E
E.g. 300mcm / 150 mm2 2500 60 48 20 17 17
1
2
3
4
5

Technical data - Dual - Conductor Cable
Based on 2g.p.m. @ 100° F temperature rise, maximum temperature 167° F. OHM's per foot cable - both lead
  300 MCM 400 MCM 500 MCM 600 MCM 650 MCM 800 MCM
Resistance ® per foot 0.0000836 0.0000625 0.0000502 0.0000422 0.0000388 0.0000312
Impedance (z) per foot 0.0000935 0.0000855 0.0000650 0.0000581 0.0000524 0.0000470

CABLE SELECTION CHART-MCM
      Amperes continuous duty current.
Duty Multiplier LEANTH
Cycle   MCM 300 400 500 600 650 800
100% 1.00 3ft 10720 12400 13700 15200 15800 17620
90% 0.95 4ft 9300 10890 12000 13100 13550 15220
80% 0.90 5ft 8350 9700 11400 11570 12200 13420
70% 0.84 6ft 7660 8800 9800 10800 11100 12480
60% 0.78 7ft 7060 8100 9100 9900 10300 11550
50% 0.71 8ft 6600 7700 8500 9100 9680 10720
40% 0.63 9ft 6210 7100 8000 8700 9160 10400
30% 0.55 10ft 5900 6800 7640 8300 8650 9650
20% 0.45 11ft 5560 6500 7250 7920 8250 9100
10% 0.32 12ft 5350 6200 6950 7620 7920 8700
5% 0.22 13ft 5160 6200 6650 7300 7600 8400
3% 0.17 14ft 5000 5570 6420 7000 7300 8130
2% 0.14 15ft 4800 5400 6200 6800 7100 7780
    16ft 4650 5150 6000 6560 6820 7620
    17ft 4500 5050 5850 6360 6640 7400
    18ft 4420 5050 5670 6100 6460 7100
    19ft 4300 4950 5540 6000 6270 7000
    20ft 4200 4850 5380 5840 6110 6820

DETERMINE THE PROPER MCM RATING: -To determine the proper MCM rating, it is a first necessary to know (a) duty cycle (b) current to be used. And (c) length of the cable to be used. Once this has been determined, proceed has follow, assuming the duty cycle has been set has at 300/0, the current at 16000 amperes and the cable length is 6 feet
